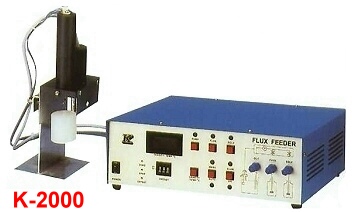

K-2000 & K-2001 Automatic Flux Controller
|
|
|
A automatic controller that control flux density with ratio control technology, capable of supplying flux and thinner automatically. The accuracy can up to ±0.002. Best solution for high quality soldering.
|
Range of specific gravity |
0.78 - 0.900 |
Precision |
0.002 |
Range of measurement temp |
0 - 50oC |
Ambient temp |
0 - 40oC |
Controlling manner |
by time ratio |
Power |
220V, 50/60Hz |
Fuse |
2A |
Dimension |
370 x 300 x 130 m/m |
Net Weight |
10.5 Kgs |
|
- Automatic re-fill flux or thinner in a ratio-controlling manner.
- Digital display for flux density and temperature, setting-up by push buttons.
- Flux lever controlled automaticall by supplying the flux or thinner to maintain the setting value of specific gravity.
- The flux life meter indicates the impurity degree of the flux ( Model K-2000). it helps to understand the right time of replacing the flux to ensure product quality.
|

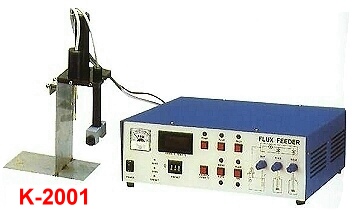

K-2001 Automatice Flux Density Controller With Particle Meter - Auto function to monitoring the polution of flux
The flux life meter indicates the impurity degrees of the flux, that the flux quality can be under control.
Lift Meter : 0 - 500 ppm |
|
Main

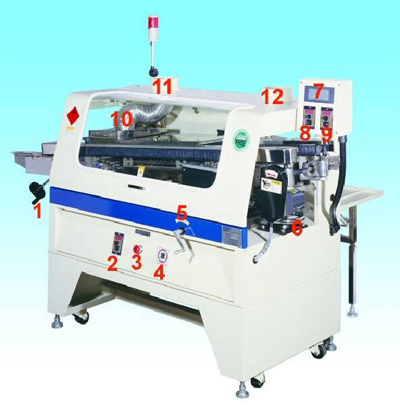

construction: lnlet Belt Conveyor, Foaming Fluxer, Pre-heater, Single Wave(C250-SW) or Daul
Wave Soldering(C250-DW) Bath, Finger Chain Conveyor, Control
System |
|
1. |
Adjust Handle of Finger width (pcb width) |
2. |
Spray Volume
Controller |
3. |
Emergency
Switch |
4. |
Weekly
Timer |
5. |
Handle of Solder Pot Roll
IN/Out |
6. |
Adjust Handle of Rail Angle |
7. |
Touch Pannel
Controller |
8. |
Soder Pot Wave
Controller |
9. |
Conveyor Speed
Controller |
10. |
Exhaust Pipe for Spray
Fluxer |
11. |
Exhaust Connector for Spray
Fluxer |
12. |
Exhaust Connector for Solder
Pot |
|
|
C250 Series wave solder machine is available with dual waves for mixed technology
(through-hole + SMT) processing or with a single wave for through-hole only.
Stand is included. It has everything you need to get started with lead-free
solders: high-temp finger conveyor, foam fluxer, 16.5" of preheating power,
high-temp solder pot, built-in controls, and stand.
An
upgrade to spray fluxer and touch-screen computer control is also available.
|
Finger conveyor eliminates the expense and time cost of using
pallets and will not wear out from the high temperatures required for lead-free
solders. Heating coils and cast, high-temperature solder pot also visible.
|
|
A rear panel drops open, allowing the supporting legs, shown
folded for storage (L), to deploy, allowing the panel to open for convenient and
easy access to the high-temperature cast solder pot.
|
|
The upgraded model of the 250C includes a spray flux unit (shown
here with its vent) in addition to the foam fluxer, and a PC with touch-screen
controls.
|
|
The upgraded 250C, with door open, showing the optional
touch-screen computer controller (right). Below the touch-screen are the
conveyor speed adjuster and the solder pot wave
adjuster.
|
|
Turning the removable handle (L) manually controls the position
of the solder pot once the rear door is opened, allowing easy access for
cleaning and maintenance.
|
|
The finger conveyor (R, inlet with the adjust handle below),
accepts differing board widths. It can be easily raised or lowered by means of
the manual wheel under the rail (L) at the other
end.
|
|
Spec. |
Model: 1400DF |
Power Requirement |
3Ø 220V / 380V / 415V, 50/60Hz |
Power Consumption |
25.6KW |
Air requirement |
5kg/cm2 |
Conveyor angle |
2~6° |
PC board size |
35~330 mm |
Fluxing coating method |
drum spray |
Pre-heater length/zone |
1.4M / 2 zone |
No.1 Pre-heater consumption (near soldering pot) |
6.6KW |
No.2 Pre-heater consumption (near fluxer) |
6.6KW |
Solder pot max. work temp. |
300°C |
Solder capacity |
300 kg |
Solder pot consumption |
13.5 KW |
Conveyor pot motor |
90W x 2 |
Solder wave height |
max. 10mm |
Conveyor motor |
60 W |
Finger cleaner motor |
35 W |
Outline dimension (L x W x H) |
3650 x 1200 x 1450 mm |
Net Weight |
820 Kg |
|
Approval by ASAHI, a famous Japanese Brand & Japan Market.
As one of partner of ASAHI, we deliver a high quality wave soldering machine to Japan Market.

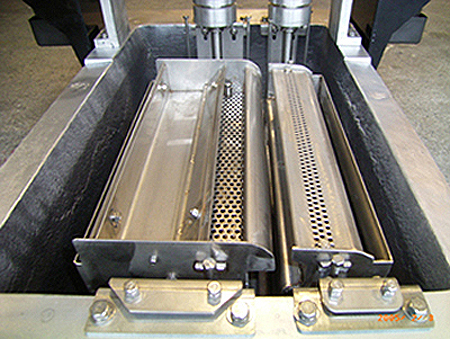

Designed to meet Lead-Free solder standards, the double wave soldering module consists of a seamless, acid-proof, stainless steel pot, equipped with internal elements, pump housing and highly stable motor. Closed loop P.I.D. controls keep a precise solder temperature. Gears and wheels built onto the solder pot make it easy to slide in and out for maintenance.
Lead-free soldering does have one glaring disadvantage. The extremely high processing temperatures can wreak havoc on wave solder equipment. The possibility of corrosion or rusting of vital parts can cause unforeseen production downtime while users await expensive replacements. What's worse,
overheating can force the premature retirement of wave solder machines long before their normal life expectancy. SOLBOT Lead free soldering machine is among the first dual wave solder machines designed from a clean sheet of paper specifically for the lead-free age. No other system offers its built-in armor against high heat. For example, the solder pots in most machines are made of titanium, an expensive metal that's highly susceptible to corrosion once heat seeps into seams. This is why ASAHI, Japan's equivalent of Underwriters Laboratories, will not recognize titanium in lead-free soldering environments.
The SOLBOT Lead Free Solbot Electronics | lead free wave soldering machine | Soldering Pot | Fluxer Controller | Conveyor System| Solbot Electronics | lead free wave soldering machine | Soldering Pot | Fluxer Controller | Conveyor System| Solbot Electronics | lead free wave soldering machine | Soldering Pot | Fluxer Controller | Conveyor System| Solbot Electronics | lead free wave soldering machine | Soldering Pot | Fluxer Controller | Conveyor System| Solbot Electronics | lead free wave soldering machine | Soldering Pot | Fluxer Controller | Conveyor Systemone-piece no seam pots employ special corrosion-inhibiting stainless steel that can't be hurt by heat. Fingers that grip circuit boards are another heat sensitive area on wave solder machines. Temperatures of 320° and up easily oxidize these parts on most machines. SOLBOT Lead Free Soldering machine grips are made of an extremely heat resistant material which can withstand this kind of heat.
|
|
|

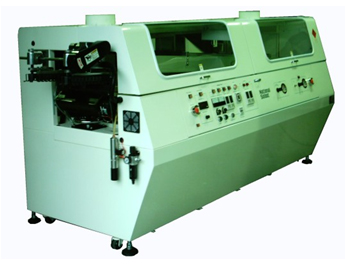

1400DF Lead Free Soldering Machine. |

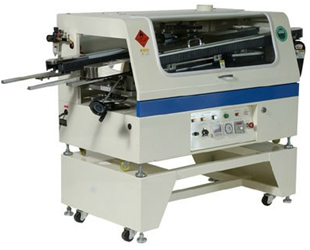

C250 Compact Design Lead free wave soldering machine |
|
|
|
|
|
