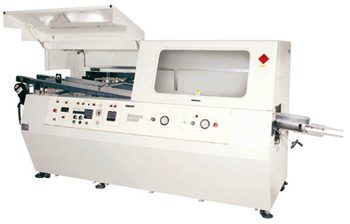

1400DF Cast - Iron Solder Pot for lead free wave soldering machine
Designed to meet Lead-Free solder standards, the double wave soldering module consists of a seamless, acid-proof, stainless steel pot, equipped with internal elements, pump housing and highly stable motor. Closed loop P.I.D. controls keep a precise solder temperature. Gears and wheels built onto the solder pot make it easy to slide in and out for maintenance.
Standard equipments
Inlet Chain Conveyor
Drum Spray Fluxer
Pre-heater
Casting Iron Solder Pot
Double Wave
Finger Conveyor
Control System
Finger Cleaner
Optional equipments
Center Bar for Solder Pot
Touch Pane & PLC Control System
Rapid cooling system
1400DF serial with special design & models:
1400DF-500: For PCB width size Max. to 500mm.
1400DF-700: For PCB width size Max. to 700mm
1400FX: Special design with vertical up-downSolbot Electronics | lead free wave soldering machine | Soldering Pot | Fluxer Controller | Conveyor System|Solbot Electronics | lead free wave soldering machine | Soldering Pot | Fluxer Controller | Conveyor System|Solbot Electronics | lead free wave soldering machine | Soldering Pot | Fluxer Controller | Conveyor System|Solbot Electronics | lead free wave soldering machine | Soldering Pot | Fluxer Controller | Conveyor System|Solbot Electronics | lead free wave soldering machine | Soldering Pot | Fluxer Controller | Conveyor Systemfor long lead dip components soldering
1400FX Video:
Main
construction: lnlet Belt Conveyor, Foaming Fluxer, Pre-heater, Single Wave(C250-SW) or Daul
Wave Soldering(C250-DW) Bath, Finger Chain Conveyor, Control
System
Inlet
rail conveyor
Pre-heatering:420mm length
Single bath-250C-SW
Double bath--250C-DW
Cast iron,high-temp. solder pot visible in this photo.
The spray volume andpressure can be adjusted for each PCB's
High Temp. Engineering fiber finger
& Finger Chain conveyor
Finger
conveyor eliminates theexpense and time cost of using pallets and will not wear
outfrom the high temperatures required for lead-free solders
Quickly raise and lower the
conveyor, or roll the solder pot in or out.
Built –in Cleaning work frame for easy access to the
high-temperature cast solder pot.
Option: PLC control
system
Option: Drun Spray
Fluxer
1.
Adjust Handle of Finger width (pcb width)
2.
Spray Volume
Controller
3.
Emergency
Switch
4.
Weekly
Timer
5.
Handle of Solder Pot Roll
IN/Out
6.
Adjust Handle of Rail Angle
7.
Touch Pannel
Controller
8.
Soder Pot Wave
Controller
9.
Conveyor Speed
Controller
10.
Exhaust Pipe for Spray
Fluxer
11.
Exhaust Connector for Spray
Fluxer
12.
Exhaust Connector for Solder
Pot
C250 Series wave solder machine is available with dual waves for mixed technology
(through-hole + SMT) processing or with a single wave for through-hole only.
Stand is included. It has everything you need to get started with lead-free
solders: high-temp finger conveyor, foam fluxer, 16.5" of preheating power,
high-temp solder pot, built-in controls, and stand.
An
upgrade to spray fluxer and touch-screen computer control is also available.
Finger conveyor eliminates the expense and time cost of using
pallets and will not wear out from the high temperatures required for lead-free
solders. Heating coils and cast, high-temperature solder pot also visible.
A rear panel drops open, allowing the supporting legs, shown
folded for storage (L), to deploy, allowing the panel to open for convenient and
easy access to the high-temperature cast solder pot.
The upgraded model of the 250C includes a spray flux unit (shown
here with its vent) in addition to the foam fluxer, and a PC with touch-screen
controls.
The upgraded 250C, with door open, showing the optional
touch-screen computer controller (right). Below the touch-screen are the
conveyor speed adjuster and the solder pot wave
adjuster.
Turning the removable handle (L) manually controls the position
of the solder pot once the rear door is opened, allowing easy access for
cleaning and maintenance.
The finger conveyor (R, inlet with the adjust handle below),
accepts differing board widths. It can be easily raised or lowered by means of
the manual wheel under the rail (L) at the other
end.
Spec.
Model: 1400DF
Power Requirement
3Ø 220V / 380V / 415V, 50/60Hz
Power Consumption
25.6KW
Air requirement
5kg/cm2
Conveyor angle
2~6°
PC board size
35~330 mm
Fluxing coating method
drum spray
Pre-heater length/zone
1.4M / 2 zone
No.1 Pre-heater consumption (near soldering pot)
6.6KW
No.2 Pre-heater consumption (near fluxer)
6.6KW
Solder pot max. work temp.
300°C
Solder capacity
300 kg
Solder pot consumption
13.5 KW
Conveyor pot motor
90W x 2
Solder wave height
max. 10mm
Conveyor motor
60 W
Finger cleaner motor
35 W
Outline dimension (L x W x H)
3650 x 1200 x 1450 mm
Net Weight
820 Kg

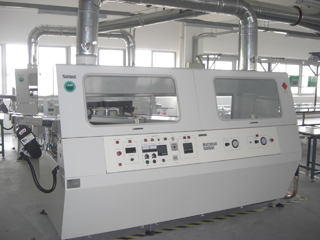

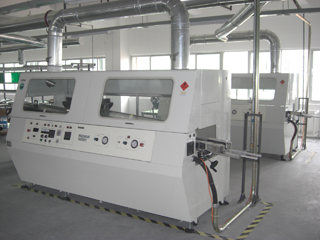

Approval by ASAHI, a famous Japanese Brand & Japan Market.
As one of partner of ASAHI, we deliver a high quality wave soldering machine to Japan Market.
Designed to meet Lead-Free solder standards, the double wave soldering module consists of a seamless, acid-proof, stainless steel pot, equipped with internal elements, pump housing and highly stable motor. Closed loop P.I.D. controls keep a precise solder temperature. Gears and wheels built onto the solder pot make it easy to slide in and out for maintenance.
Lead-free soldering does have one glaring disadvantage. The extremely high processing temperatures can wreak havoc on wave solder equipment. The possibility of corrosion or rusting of vital parts can cause unforeseen production downtime while users await expensive replacements. What's worse,
overheating can force the premature retirement of wave solder machines long before their normal life expectancy. SOLBOT Lead free soldering machine is among the first dual wave solder machines designed from a clean sheet of paper specifically for the lead-free age. No other system offers its built-in armor against high heat. For example, the solder pots in most machines are made of titanium, an expensive metal that's highly susceptible to corrosion once heat seeps into seams. This is why ASAHI, Japan's equivalent of Underwriters Laboratories, will not recognize titanium in lead-free soldering environments.
The SOLBOT Lead Free
Solbot Electronics | lead free wave soldering machine | Soldering Pot | Fluxer Controller | Conveyor System|Solbot Electronics | lead free wave soldering machine | Soldering Pot | Fluxer Controller | Conveyor System|Solbot Electronics | lead free wave soldering machine | Soldering Pot | Fluxer Controller | Conveyor System|Solbot Electronics | lead free wave soldering machine | Soldering Pot | Fluxer Controller | Conveyor System|Solbot Electronics | lead free wave soldering machine | Soldering Pot | Fluxer Controller | Conveyor Systemone-piece no seam pots employ special corrosion-inhibiting stainless steel that can't be hurt by heat. Fingers that grip circuit boards are another heat sensitive area on wave solder machines. Temperatures of 320° and up easily oxidize these parts on most machines. SOLBOT Lead Free Soldering machine grips are made of an extremely heat resistant material which can withstand this kind of heat.
1400DF Lead Free Soldering Machine.
