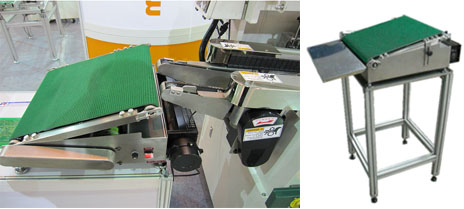

Desktop Belt Conveyor



MODEL: BC-400


  • Anti-static belt.
  • All stainless steel structure.

Specifications
Power source (Voltage upon request) 1Φ200V/220V, 50/60Hz
Power consumption 25W
Belt width 350 mm
Belt length 400 mm
Conveyor angle 6º~24º Adjustable
Conveyor direction Left to right
Conveyor speed Max.3.6M/min. (60Hz)
Conveyor motor 25W
Cooling Fan 35W
Dimensions 545(L) x 535(W) x 180(H)
Weight Approx. 20kg
Operating condition 5°C to +40°C ,20% to 85%RH altitude up to 1000m
Transportation and storage temperatures within a range of -25°C to +55°C, 24h at up to +70°C
Option Aluminum Frame
All specifications are subject to change without notice
