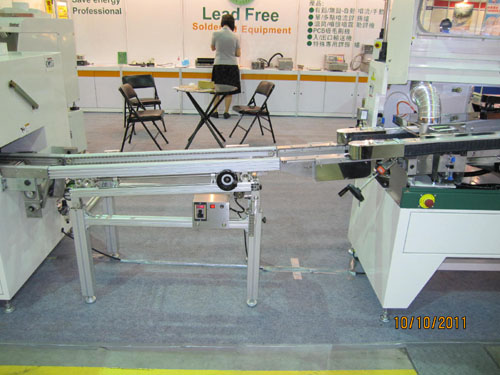

Digital
readout for conveyor speed.
- Ruler for rail width.
-
Rail angle scale.
-
All aluminum frame structure.
- Easy to adjust and operate.
|
|
| Specifications |
| Power source |
1Φ200V/220V, 50/60Hz |
| Power consumption |
25W |
| Rail width |
50 ~ 350 mm |
| Rail length |
1,100 mm |
| Conveyor angle |
0~7° Adjustable |
| Conveyor height |
750±30 mm |
| Conveyor direction |
Left to right/ Right to left |
| Conveyor speed |
Max.250CM/min. (60Hz) |
| Conveyor motor |
25W |
| Dimensions |
1,100(L) x 610(W) x 755(H) |
| Weight |
Approx. 40kg |
| Operating condition |
+5°C to +40°C ,20% to 85%RH
altitude up to 1000m |
| Transportation and storage temperatures |
within a range of -25°C to +55°C,
24h at up to +70°C |
All specifications are subject to change without notice |
|
| Main
construction: lnlet Belt Conveyor, Foaming Fluxer, Pre-heater, Single Wave(C250-SW) or Daul
Wave Soldering(C250-DW) Bath, Finger Chain Conveyor, Control
System |
|
| 1. |
Adjust Handle of Finger width (pcb width) |
| 2. |
Spray Volume
Controller |
| 3. |
Emergency
Switch |
| 4. |
Weekly
Timer |
| 5. |
Handle of Solder Pot Roll
IN/Out |
| 6. |
Adjust Handle of Rail Angle |
| 7. |
Touch Pannel
Controller |
| 8. |
Soder Pot Wave
Controller |
| 9. |
Conveyor Speed
Controller |
| 10. |
Exhaust Pipe for Spray
Fluxer |
| 11. |
Exhaust Connector for Spray
Fluxer |
| 12. |
Exhaust Connector for Solder
Pot |
|
|
C250 Series wave solder machine is available with dual waves for mixed technology
(through-hole + SMT) processing or with a single wave for through-hole only.
Stand is included. It has everything you need to get started with lead-free
solders: high-temp finger conveyor, foam fluxer, 16.5" of preheating power,
high-temp solder pot, built-in controls, and stand.
An
upgrade to spray fluxer and touch-screen computer control is also available.
|
Finger conveyor eliminates the expense and time cost of using
pallets and will not wear out from the high temperatures required for lead-free
solders. Heating coils and cast, high-temperature solder pot also visible.
|
|
A rear panel drops open, allowing the supporting legs, shown
folded for storage (L), to deploy, allowing the panel to open for convenient and
easy access to the high-temperature cast solder pot.
|
|
The upgraded model of the 250C includes a spray flux unit (shown
here with its vent) in addition to the foam fluxer, and a PC with touch-screen
controls.
|
|
The upgraded 250C, with door open, showing the optional
touch-screen computer controller (right). Below the touch-screen are the
conveyor speed adjuster and the solder pot wave
adjuster.
|
|
Turning the removable handle (L) manually controls the position
of the solder pot once the rear door is opened, allowing easy access for
cleaning and maintenance.
|
|
The finger conveyor (R, inlet with the adjust handle below),
accepts differing board widths. It can be easily raised or lowered by means of
the manual wheel under the rail (L) at the other
end.
|
|
| Model |
C250-SW Single wave |
C250C-DW Double wave |
C250-PLC Doubel wave+Spray Fluxer |
| Power requirement |
3φ220V,
50/60Hz (
Voltage: upon request) |
| Energy consumption |
7.65KVA |
7.7KVA |
| Compress Air |
5kg/cm2,
5 CFM |
5kg/cm2,
5 CFM |
5kg/cm2,
25 CFM |
| Conveyor angle |
3-6o Adjustable |
| Conveyor speed |
Max.1.6M/min,
/2.0M/min(50/60Hz) |
| Fluxing style |
Foaming
fluxer |
Spray Fluxer |
| Fluxer capacity |
3.0 liter |
300c.c. |
| Size of PCB |
30 ~ 250mm |
| Pre-heater zone length |
420mm |
| Pre-heater consumption |
2.4kw
(0.8kw x 3) |
| Solder pot max. working temp. |
300oC |
| Solder capacity |
100kg |
98kg |
| Solder pot power consumption |
5.1KW |
| Heating method of solder pot |
Indirect heating method |
| Solder wave type |
single
wave |
Double
wave |
| Solder wave height |
10mm Max. |
| Main wave Motor |
60W |
90W |
| Main conveyor motor |
40W |
| Main conveyor finger |
L
Type, High Temp. Fiber Finger |
Outline dimension
(Incldue Standard Frame
H: 300mm |
1960 x830 x1,275mm (exclude warning light) |
2,020x830x1,505mm (include warning light) |
| Net Weight including Stand |
448KG |
460KG |
470KG |
 |
Low-Volume, Seamless Solder Pot Loads Easily and Carries Three-Year Warranty
C250 Wave Soldering Systems feature a high-efficiency, low-volume solder pot and corrosion-resistant wave pumping system. Developed in conjunction with some of our closest customers, the initial start-up cost for solder when using the C250 is approximately two-thirds to half the cost of competitive equipment. Our high-efficiency heaters and small, 100 kg (220 lb.) volume considerably decrease start-up time and consume much less energy, but more importantly reduce oxidation and dross formation. The specially-coated, solid cast-iron solder pot has a seamless construction and includes a three-year replacement warranty. The solder pot and wave assembly easily slide out from the rear of the unit onto an extendable platform and are braced by heavy-duty supporting legs during loading and maintenance
|
Available in Either Single- or Dual-Wave Configuration
The C250 is supplied as standard in a single-wave configuration for conventional through-hole assemblies, but for minimal additional cost can also be supplied as a dual-wave system for surface mount and mixed technology boards. Dual-wave technology often provides improved hole penetration and reduced bridging on difficult-to-solder boards of all technologies and therefore makes the dual-wave configuration very popular. If necessary, the chip wave in dual-wave systems can easily be deactivated through the installation of a nozzle cover plate included with this option. Wave height control is dial-adjustable to a maximum height setting of 10 mm (.39") and the wave pump motor, with on/off control activated by optical board sensors on the conveyor, is also protected by low temperature and overheat alarms.
Adjustable Fiber-Finger Conveyor and IR Preheater Allow Precise Lead-Free Profiling
The C250 Wave Soldering System includes a high-temperature, corrosion-resistant, fiber-finger conveyor system with variable speed up to 2 m/min (79"/min). Conveyor angle (3°-6°) and width are easily-adjustable to accommodate PCBs from 30 mm to 250 mm (1.2" to 10"). A chain-driven, pin-type inlet conveyor is included as standard and allows easy loading of assemblies and smooth transfer into the conveyor fingers.
After flux application, a 420 mm IR preheater uses stainless-steel sheath-type heaters to raise PCBs and components to manufacturers' recommended temperatures for proper activation of VOC-Free and Lead-Free fluxes.
Innovative Drum-Spray Fluxing System Provides Benefits of Both Spray and Foam Methods
| A reliable, easy-to-use foam fluxing system is included with the standard C250 and provides extremely consistent, maintenance-free performance over extended periods. For assemblers looking for even greater precision, the C250 can also be purchased with our optional "drum-spray" fluxing system. Drum-Spray Fluxing Technology is designed to deliver the precision of spray fluxing through a simple, innovative design that is easier to set up and maintain, and less costly to operate than other spraying methods. As shown in the diagram below, the Drum-Spray nozzle is positioned as close to the bottom of the PCB as possible and precisely applies flux in a thin vertical knife pattern across the full width of the board as it passes over the rotating drum. This method has been shown to provide more uniform application and less flux waste than systems that utilize small nozzles mounted to a reciprocating motor drive below the PCB. An adjustable mask is used to control the width of the spray pattern and optical sensors provide on/off control of the spray mechanism. |
|
|
|
|
| |
| |
 |
|
 |
|
Pre-heater ON/OFF
Switch
